Ford 2300 SOHC Ultra-lite 2474cc n/a Stage 4 shortblock

Stage 4 Ultra-lite Shortblocks include:

Fully machined OEM block

LW 3.310" stroke Ford 2300 SOHC crankshaft

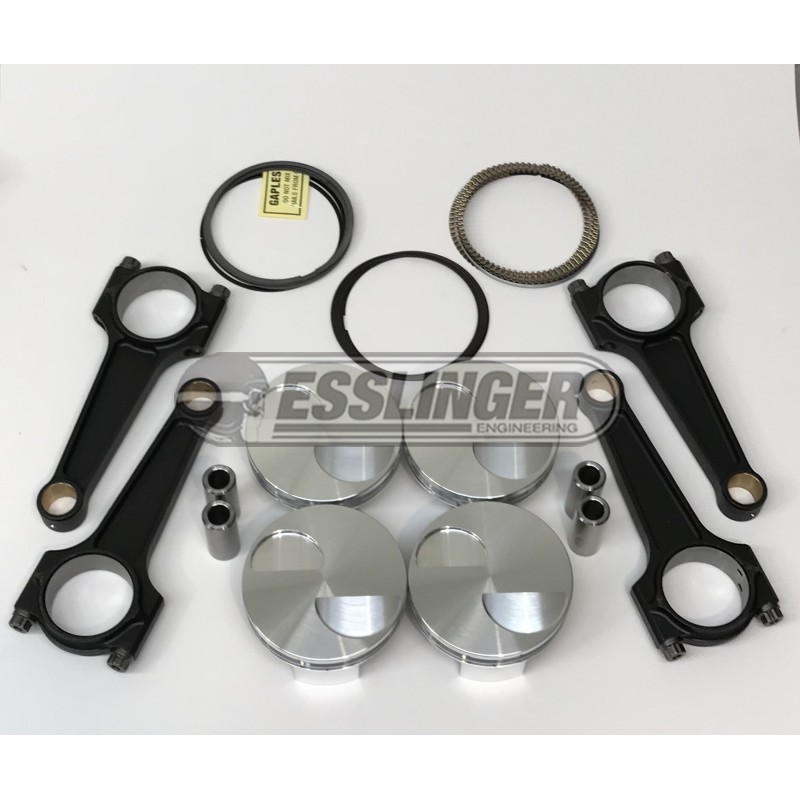

Ultra-Lite 3.810" bore Boxed, & gas-ported flat-top JE pistons (-2cc)

Ultra-Lite Carrillo H-beam 5.7" rods (~500g)

ARP mainstud kit

Clevite "77" Main Bearings

Clevite "77" Rod Bearings

Esslinger Machined intermediate shaft bearings

Recommended maximum rpm:

Stage 4: 8800rpm on dirt, and 8400rpm on asphalt

Build Quality:

Our shortblocks are assembled by the same technicians that build our race and championship winning engines.  Each shortblock is built in an OEM Ford block that has been thoroughly inspected, magnafluxed, de-rusted, cleaned, and fully machined to our exacting specifications in our shop.  All cylinder honing is performed using our diamond tooling while a custom made torqueplate is torqued to 90ft.lbs using ARP headstuds.  The main bearing housings are alignhoned with ARP mainstuds torqued to 90ft.lbs. to verify everything is straight and perfectly sized.  The block is machined to a 8.355" deck height to get the pistons to zero deck* at TDC for maximum legal performance.  Our technicians install new brass freeze plugs new front & rear oil galley plugs, and paint the block before assembling the rotating assembly.  Bearing clearances are individually checked and adjusted to fit within our exacting tolerances as are the piston to cylinder, and ring gaps.  Rod bolts are tightened to match ARP's recommended stretch range, not just "torqued" in place.  Each block has a set of our machined intermediate shaft bearings installed.
